Alanya Fire-Resistant Cables: Safe Installations According to EN54 Standards.

Alanya Fire-Resistant Cables: The Cornerstone of Fire Safety

In Alanya, the reliability of fire detection systems in hotels, residential complexes, shopping malls, and hospitals is directly dependent on a high-quality cabling infrastructure. Fire-resistant cable is essential, as normal cables can disable the system in an emergency when exposed to the high temperatures of a fire. This article explains why special fire-resistant cable is indispensable in Alanya's tourism and commercial buildings, the EN54 standards, and the correct selection criteria.

What is Fire-Resistant Cable and Why is it Important?

Fire-resistant cable is a special conductive system that does not burn at high temperatures and maintains its function during emergencies. While normal electrical cables begin to melt at 70–80°C, fire-resistant cables can withstand temperatures up to 750–900°C.

In Alanya, when a fire breaks out in accommodation and commercial facilities, the emergency evacuation time is measured in minutes. If the wired communication of the fire alarm system is interrupted:

• Loss of early warning: The detectors are unable to transmit the detected fire to the panel.

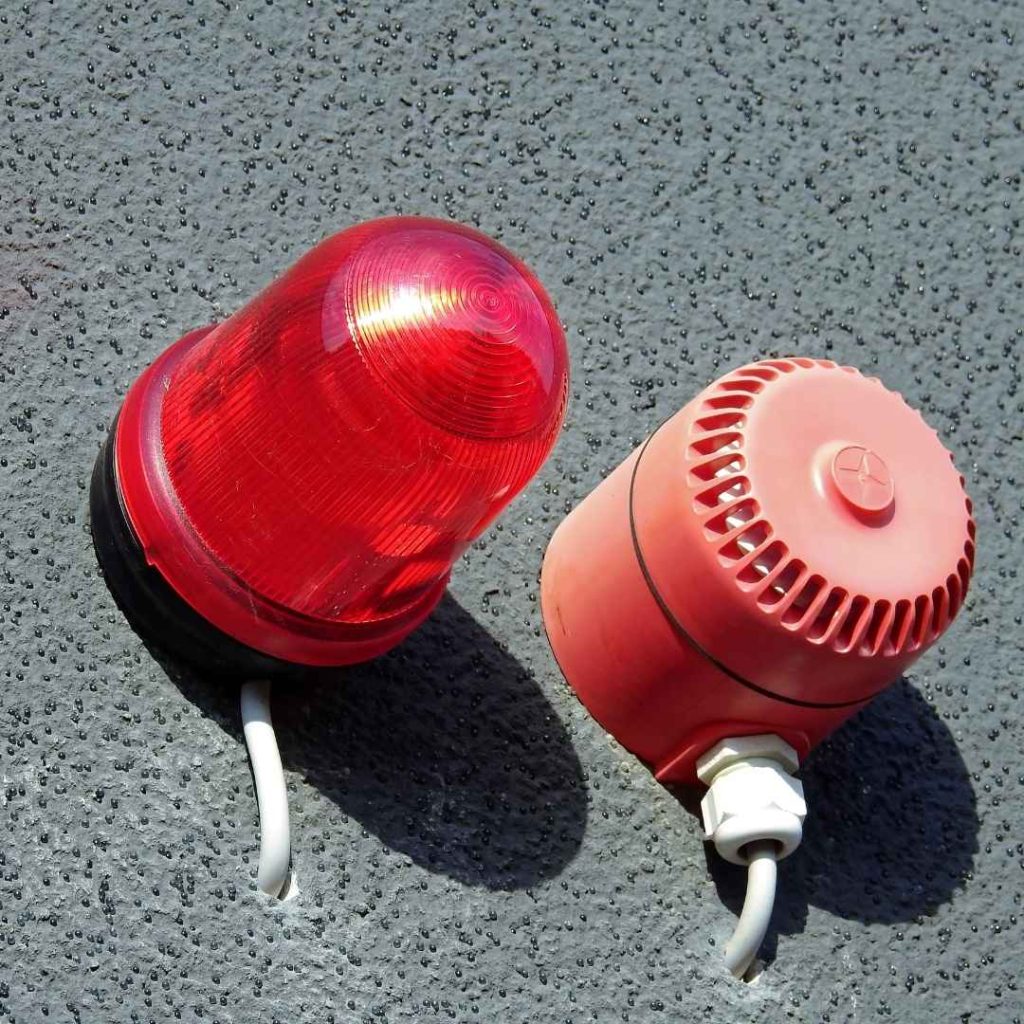

• Siren and flashing lights are deactivated: People can't hear the evacuation alarm.
• Emergency exit lights are not working: Evacuation routes remain dark.
• External notification systems are crashing: The fire department and security center are not being notified.

Because Fire-resistant cables are not just a regulatory requirement; they are fundamental to life safety..

EN54 Standard Fire Resistant Cable

Fire alarm systems in Türkiye EN54 (European Norm 54 – Fire Warning Systems) It must comply with the standard. There are many testing and certification procedures that define EN54 cable requirements. Professional system installers in Alanya are required to use EN54 compliant cables.

EN54 Standard Cable Specifications

• EN 60331-21: Electrical installation operation during fire (operating conditions ensured by 750°C, 3-hour resistance test)
• EN 50200: Resistance to the effects of ionizing radiation.
• Cable cross-section and voltage drop: The EN54 “System Design” guideline specifies the maximum length and cross-section for each cable segment.
• Dual cabling or ring topology: Loop integrity must be ensured in addressable systems.
• Protected and labeled: Each cable segment must be marked with colored tape and labels.

Professional fire alarm installation services in Alanya.Netko Fire implements these standards step by step. During the discovery phase, the team plans the cabling strategy based on risk analysis and structural mapping.

Types and Selection Criteria of Fire-Resistant Cables

1. Industrial Fire Resistant Cables

These are cables with aluminum or copper conductors and silicone rubber insulation. They are the most commonly used type in EN54 loop-based (addressable) systems.

Areas of application: Hotels, shopping malls, hospitals, educational institutions, industrial facilities

2. Mineral Insulated Cables

Copper conductor, copper mesh shield, magnesium oxide mineral filler, and outer copper sheath. Provides maximum strength and integrity, but is more expensive and requires lockpicking work.

Areas of application: High-risk areas, petrochemicals, data centers (although rarely necessary in the Alanya region, preferred in special circumstances)

3. Halogen-Free and Flame Retardant Cables

It does not release corrosive gases in a fire; it slows the spread of fire. It is preferred in enclosed spaces and areas containing sensitive electronic systems.

Areas of application: Hospital intensive care unit, data room, library, museum

Cable Cross-Section and Voltage Drop Calculation

In a hotel or residential complex in Alanya from fire detectors The cables leading to the central panel must be selected with the correct cross-section. If the cross-section is too small, the voltage drop due to resistance will cause the detectors or output modules to lose power.

Professional surveying and designIt calculates the maximum distance and required cross-section for each cable segment. For example:

• Panel → Detector (30 meters): 2×1.5 mm² may be sufficient.
• Panel → Siren (60 meters): 2×2.5 mm² or thicker may be required.
• Long loop line (200+ meters): 2×4 mm² or 2×6 mm² required.

Voltage drop according to EN54 standard. maximum %5 This account is limited to [amount]. This account guarantees the uninterrupted operation of the system's early warning and emergency evacuation functions.

Cable Installation Applications at Alanya Facilities

Cable Routing and Protection

Fire-resistant cables are much stiffer and thicker in cross-section than normal cables. They should be routed inside metal or plastic conduits. In hotel lobbies, routing them through suspended ceilings or inside walls is preferred over visible cabling.

Ring Topology

In addressable (intelligent) systems, cables start from the panel output, route through all detectors and modules, and return to the panel. Public integrity If it malfunctions, the system may lose its detectors. Each cable cut must be labeled and recorded in the logbook.

Cable Distance and Electromagnetic Compatibility (EMC)

The power cable (380V, 16A) and the signal cable (fire alarm loop) should not be routed within the same tube. Otherwise, electromagnetic interference (EMI) may disrupt the detector signal. A minimum distance of 15–20 cm is recommended in EN54 design standards.

Periodic Maintenance and Cable Inspection

The tropical (hot and humid) climate and salty air of the Alanya region can expose cabling infrastructure to rising temperatures over time. Professional maintenance plans should include:

• Annual check-up: The cable sheath is checked for cracks, abrasion, insect or rodent damage.
• 6-month test: Loop resistance and voltage drop are measured.
• Logbook entry: Each maintenance history, inspection details, and recommendations are recorded.
• Proactive renewal: Aging or damaged cables are replaced without any malfunction.

Professional maintenance of fire extinguishing and alarm systems.Netko Fire considers cabling integrity to be the most critical security element. monthly, quarterly, six-monthly, and annual maintenance plans By doing so, it ensures that the fire detection systems of the Alanya facilities are operational at all times.

Regulatory Compliance and Official Acceptance

In Türkiye Regulation on the Protection of Buildings from Fire Regulations (2009/2018) mandate that all fire alarm systems be installed in accordance with EN54/TSE/CE standards. Part of this is... cabling selection and installation.

When selling, transferring ownership of a hotel or residential complex, or filing an insurance claim, an official fire alarm certificate is required. This certificate is obtained not only with the correct equipment, but also... Detailed cable design, installation, test report, and legal commissioning process. It will be given if completed.

Common Mistakes in Cable Selection

• Using a standard electrical cable: The system will be disabled in case of fire — this is strictly prohibited.
• Not performing a cross-section calculation: Voltage drops weaken detector and alarm signals.
• It overlooks the cabling documentation: Maintenance and troubleshooting become very difficult, leading to legal problems.
• Choosing cheap, uncertified cable: Non-EN54 compliant cabling completely eliminates fire safety.
• Leaving the assembly to the cheapest contractors: Fire-resistant cable installation is more the job of a fire engineer than an electrician.

Professional Cabling Design and Installation in Alanya

Implementing fire alarm systems in hotels, apartment complexes, shopping malls, hospitals, and industrial facilities in and around Alanya requires not just equipment selection, but a complete project planning discipline.

Netko Fire, with every project Discovery → Risk Analysis → Technical Specifications → Cable Design → Procurement → Installation → Testing & Commissioning → Documentation → Periodic Maintenance It implements the flow. The selection of fire-resistant cable is central to the system design.

For a fire alarm system of a facility under construction or renovation in the Alanya region. to request independent surveys and proposalsThis is a critical step in terms of operational safety and regulatory compliance.

Conclusion

Fire-resistant cable, while seemingly a “silent” system component, is the backbone of life safety in an emergency. In Alanya, hotels, residential complexes, shopping malls, and other commercial facilities... High-quality cabling according to EN54 standards. Making your choice:

• It ensures uninterrupted early warning and evacuation functions.
• This provides protection against electromagnetic interference.
• It facilitates periodic maintenance and troubleshooting.
• It meets legal and insurance obligations.
• It advises the business owner to manage the business with peace of mind.

If you are planning to install or modernize a fire detection system, Thinking about the cabling strategy in advance Consulting with expert engineers is the first step towards ensuring workplace safety in Alanya.
